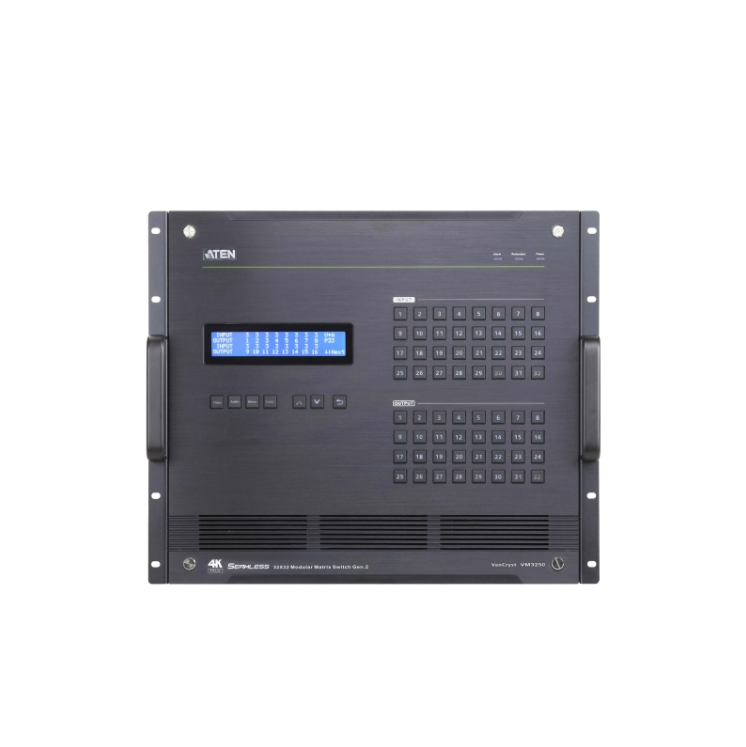

The VM3250 Modular Matrix Switch Gen. 2 offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3250 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers from the front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.

Boasting a sophisticated and reliable design that delivers the best audio/visual distribution and control, the solution also incorporates an Award-winning GUI that can be accessed from anywhere over a network or the internet. Through the intuitive web interface, video sources can be previewed in real-time via live streaming and video walls can be easily set up. A calendar-based scheduling function allows you to queue and play connection profiles via a calendar view for a set period of time, reducing related operation costs.

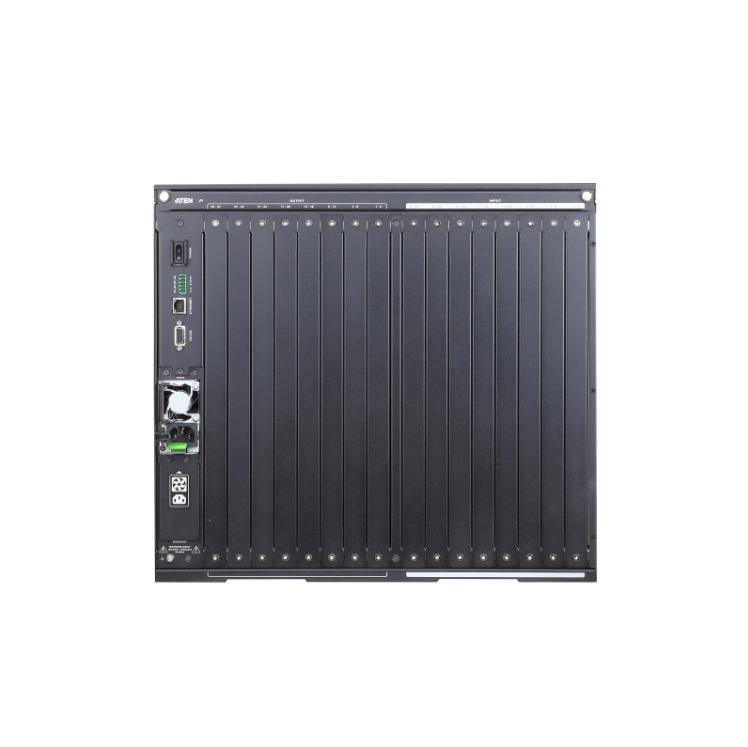

The VM3250 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows various combinations of digital and analog video interfaces, including Fiber Optic, HDBaseT, DisplayPort, HDMI, DVI, 3G-SDI, and VGA. The flexibility and expandability make it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.

* Compatible I/O Boards

FEATURES

• 32 x 32 I/O connections via 8 x 8 I/O slots for modular matrix boards
• Multiple Control Methods – system management via front-panel pushbuttons, serial control over RS-232/RS-485/RS-422, and web GUI/Telnet over Ethernet connections
• True 4K Resolutions – Supports uncompressed video resolutions up to 4096 x 2160 / 3840 x 2160@60Hz (4:4:4) *
• Custom Scaler Resolution - รองรับการตั้งค่าความละเอียดของสัญญาณภาพขาออก ที่ไม่ได้เป็นอัตราส่วนมาตรฐานทั่วไปได้เองตามต้องการ เช่น 1:1 ที่ 1024x1024 เป็นต้น เหมาะสำหรับ การนำไปใช้ร่วมกับระบบภาพแบบ LED Panel ที่มีขนาดและรูปร่างแตกต่างกัน (เฉพาะเมื่อใช้ร่วมกับ I/O Module รุ่น VM8814, VM8824, VM8514 + VE816R)


• Scaler – features a video scaling function to convert input resolutions to the optimum display resolutions*
• Seamless Switch™ – features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
• Video Wall – allows you to create custom video wall layouts via intuitive web GUI*
• Live Streaming – supports single source live streaming via web GUI for convenient evaluation of display output
• Content and Layout Preview – displays thumbnails of source media in web GUI, simplifying profile configuration
• Calendar-based Scheduling – allows profile playing based on the pre-set schedule synchronized with RTC
• EDID Expert™ – selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
• Audio-enabled – HDMI audio can be extracted and stereo audio can be embedded*
• Optional Redundant Power Supply – ensures higher reliability for mission-critical applications
• Support long-distance transmission via optical or HDBaseT I/O boards and extenders
• Hot-swappable I/O boards, fan module, and power supplies for easy maintenance
• ESD protection for HDMI
• Rack-mountable (9U design)

  *Note:
  1. The availability of these features depends on which I/O board is inserted.
  2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch
