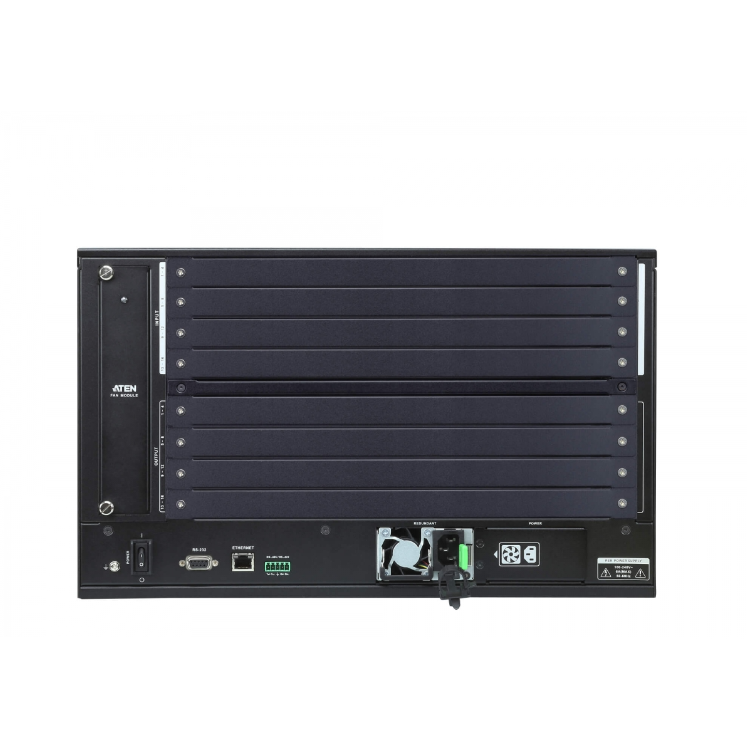

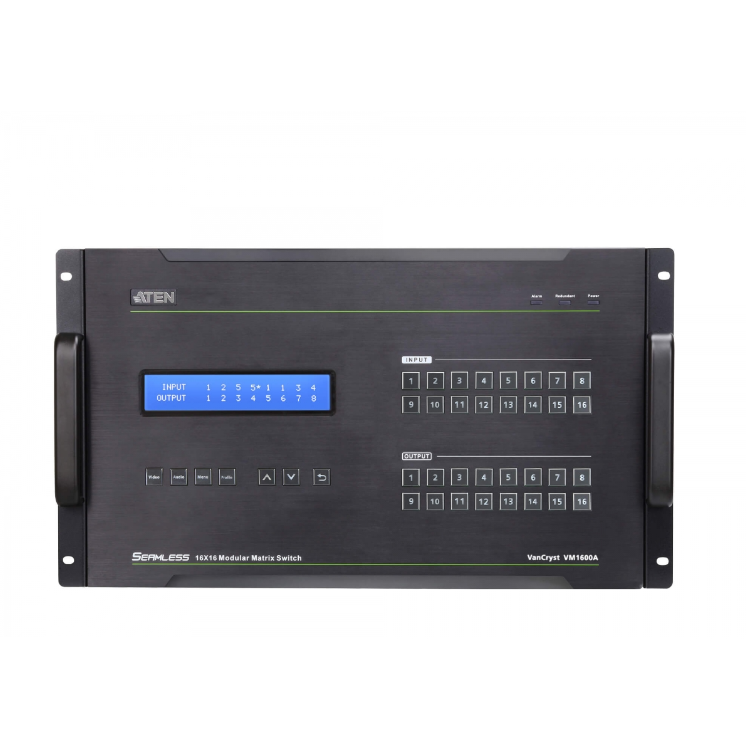

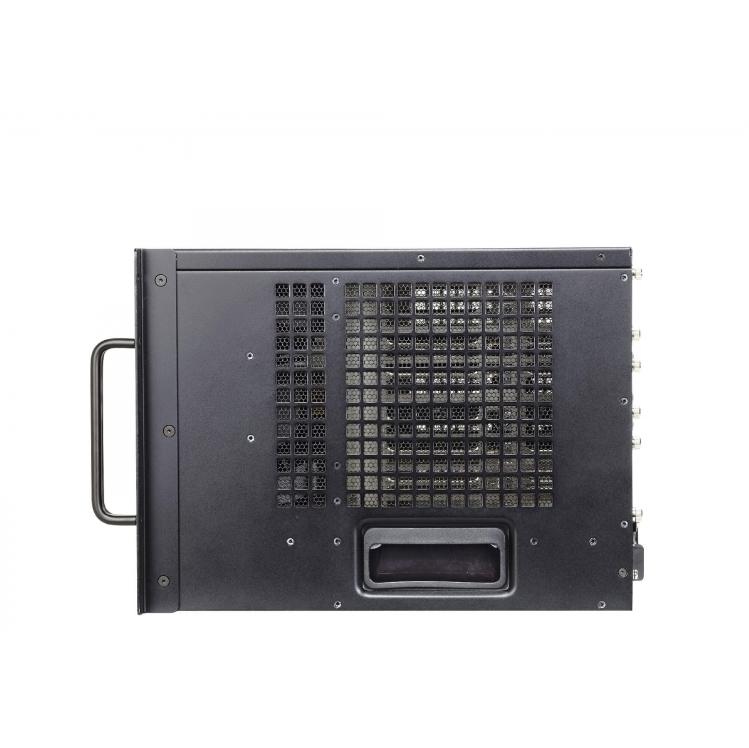

The ATEN Modular Matrix Solution Series comprises the VM1600A Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16 video sources and 16 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.

The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.

Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.

รองรับการควบคุมผ่าน MOBILE APP ทั้งบน IOS, ANDROID (  เพิ่มเติม )

FEATURES

• Connects any of 16 video sources to any of 16 displays in combination with ATEN Modular Matrix I/O Boards
• Multiple means for system configuration including front-panel pushbuttons, RS-232/422/485 control, and Ethernet connections for web GUI or Telnet
• 4K resolutions –up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)*
• Scaler –features a (4K) video scaling function to convert input resolutions to the display’s native resolutions*
• Custom Scaler Resolution - รองรับการตั้งค่าความละเอียดของสัญญาณภาพขาออก ที่ไม่ได้เป็นอัตราส่วนมาตรฐานทั่วไปได้เองตามต้องการ เช่น 1:1 ที่ 1024x1024 เป็นต้น เหมาะสำหรับ การนำไปใช้ร่วมกับระบบภาพแบบ LED Panel ที่มีขนาดและรูปร่างแตกต่างกัน (เฉพาะเมื่อใช้ร่วมกับ I/O Module รุ่น VM8814, VM8824, VM8514 + VE816R)





• Seamless Switch™ –features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
• Video wall –allows you to create custom video wall layouts via intuitive web GUI*
• Calendar-based scheduling – allows profile playing based on the pre-set schedule and RTC
• EDID Expert –selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolutions across different screens
• Audio-enabled –HDMI audio can be extracted and stereo audio can be embedded*
• Bi-directional RS-232 channel – allows you to control the connected serial devices simultaneously through the web GUI
• Supports redundant power module for higher reliability

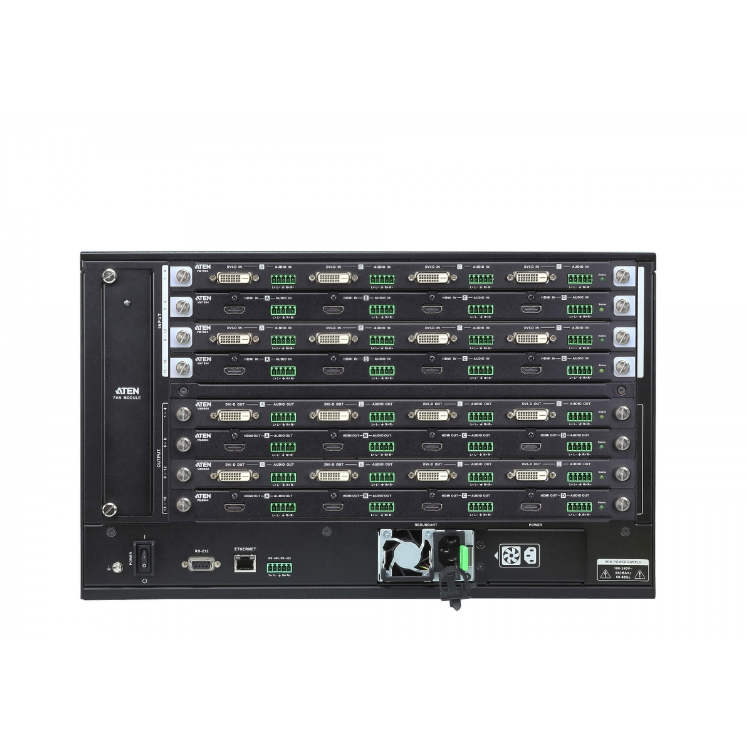

• Hot-swappable design for I/O boards, fan module, and power supplies for easy maintenance and higher reliability
• Optional redundant power supply –ensures reliability for mission-critical applications
• Long-Reach mode up to 1080p@150m – enables extended AV transmission using the HDBaseT™ Input/Output board with ATEN HDBaseT™ Class A Video Extenders
• HDCP 2.2 Compatible*
• HDMI: 3D, Deep Color, 4K*
• Consumer Electronics Control (CEC) supported*
• Rack mountable (6U design)

  Note:
  1. The availability of the features with “*”depends on which I/O board is inserted.
  2. When Seamless Switch™ is enabled, 3D, Deep Color, or interlace (i.e., 1080i) formats will not be supported. To use these formats, make sure to disable Seamless Switch™.
  3. Videos may not display within range when Seamless Switch™ or Video Wall is enabled, in which case please adjust the display settings on your device.

DIAGRAM

MODULE INPUT/OUTPUT BOARD

ตัวส่งที่ต้องใช้งานร่วมกัน VM7514

* Supports full frequency IR signals from 30 KHz to 60KHz; however the IR receiver cable included with the package only supports 30KHz to 56 KHz.

** 4K resolutions are only available when the sclaer is disabled. When the scaler function is implemented the highest resolution available is 1080p. The scaler function is enabled by default.

ตัวรับที่ต้องใช้งานร่วมกับ VM8514

* Supports full frequency IR signals from 30 KHz to 60KHz; however the IR receiver cable included with the package only supports 30KHz to 56 KHz

** When the VM8514 is used in combination with the VE805R the setup will support the Seamless Switch™ and Scaler functions.

*** 4K resolutions are only available when the sclaer is disabled. When the scaler function is implemented the highest resolution available is 1080p. The scaler function is enabled by default.
