Technical Data
Model	PTZ312
Image Sensor	1/2.8" CMOS, 2.14 MP
Lens	f=3.9~46.8mm, F1.6~F2.8
Digital Zoom	8X
Field Of View	72.5° - 6.3°
Focus	Auto/Manual/PTZ Trigger/One Push Trigger
Min. Illumination	0.5Lux
Shutter Speed	1/60s～1/10,000s
Gain	Auto/Manual
White Balance	Auto/One Push/Manual/Auto Tracking/Static
AE Control	Auto/Manual/Shutter Priority/Iris Priority/Bright Priority
S/N	≥50dB
DNR	2D/3D
BLC	Support
PTZ
Pan Angle	-170°～+170°；0.1°～120°/s
Tilt Angle	-30°～+90°；0.1°～80°/s
Preset Number	256
Menu	Support
Image Flip	Support

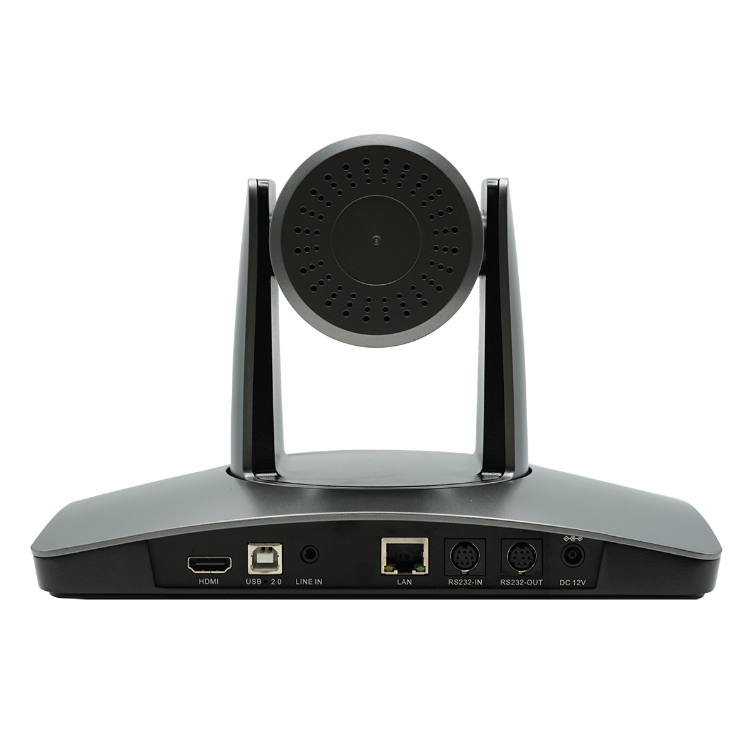

Interface
HDMI	1 channel HDMI
Network	RJ45(10M/100M)
	1.Up to 1080P30
	2.Image compression H.264/H.265
	3.Support HTTP/TCP/UDP/RTSP/RTMP/ONVIF
	4.Support AAC
	5.Support dual streaming
USB	1 channel USB 2.0
Audio Interface	1 channel LINE IN
Control Interface	1 channel RS-232 IN, 1 channel RS-232 OUT
Power	DC12V
General
Protocols	VISCA (support daisy chain)/PELCO-P/PELCO-D
Addresses	DC12V
Power Consumption	＜18W
Working Environment	Temperature:0°C ～ + 40°C；Relative Humidity:10%RH ～ 90%RH
Storage Environment	Temperature:-20°C ～ +60°C；Relative Humidity:10%RH ～ 95%RH
Dimensions	243mm×145mm×163mm（WDH）
Weight	1.2kg
Color	Grey

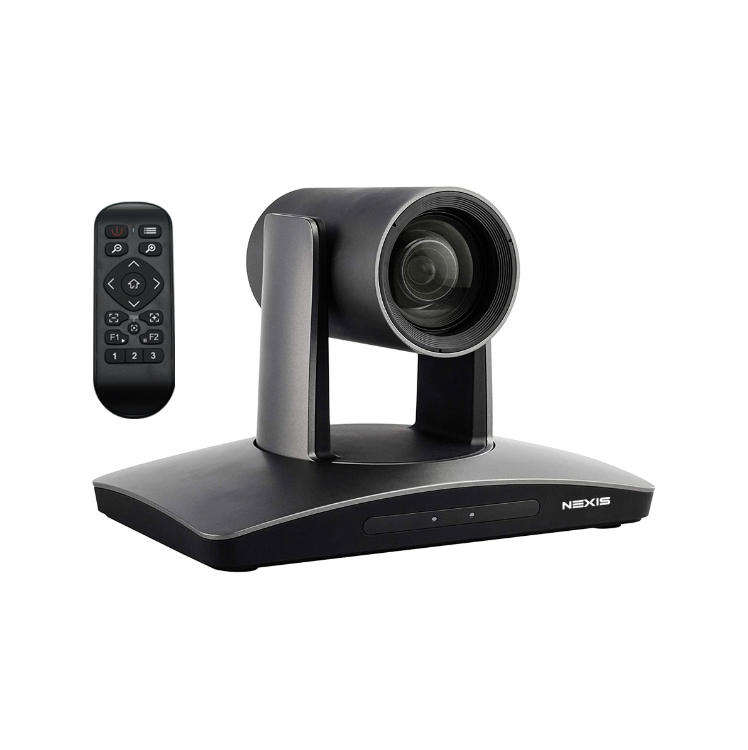

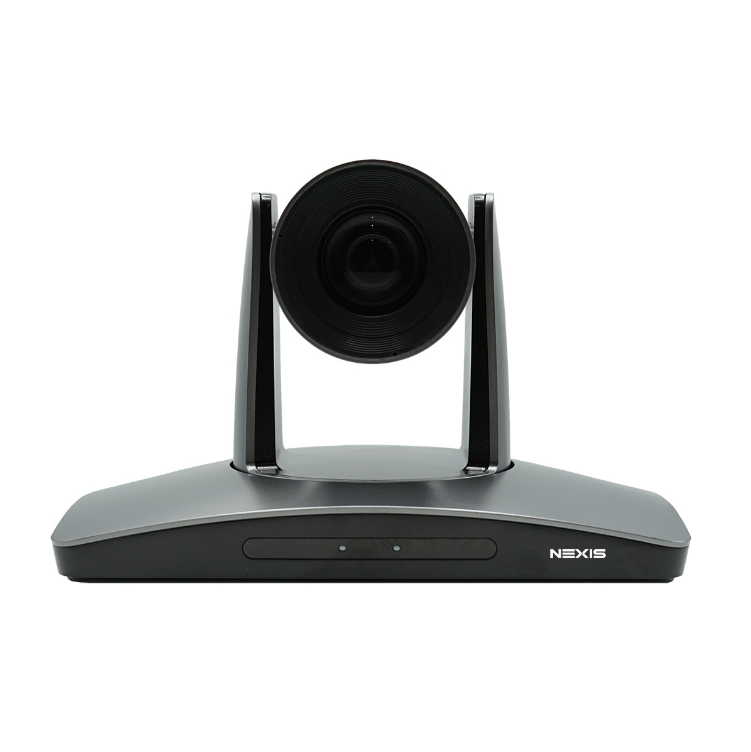

12X OPTICAL ZOOM PTZ VIDEO CONFERENCE CAMERA WITH HDMI, USB2.0, LAN
