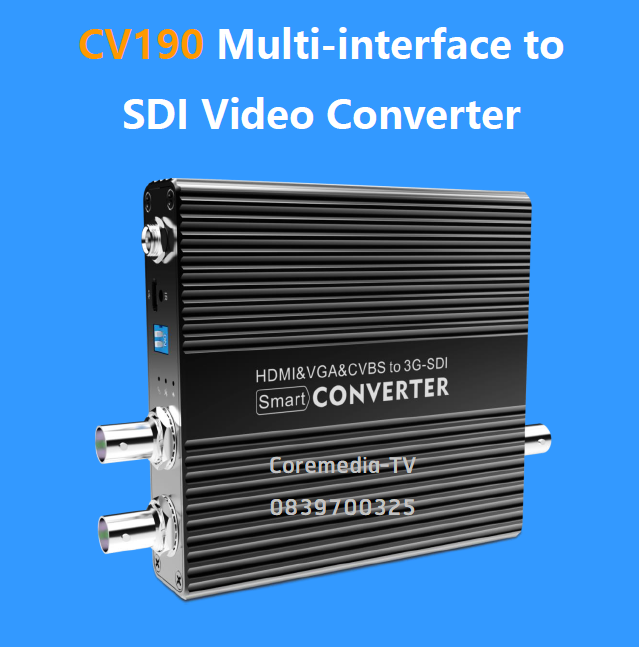

Kiloview CV190 HDMI VGA CVBS TO SDI Converter

อุปกรณ์แปลงสัญญาณวีดีโอแบบ HDMI VGA CVBS แปลงเป็น SDI นอกจากแปลงสัญญาณได้หลายแบบแล้วยังสามารถปรับแต่ง Resolutions หรือ Scaler ได้ตรงตามต้องการทุกขนาด ราคาประหยัด รองรับได้หลากหลายอุปกรณ์ เหมาะสำหรับงานนอกสถานที่ รองรับสถานการณ์ฉุกเฉินที่ไม่คาดคิด

Feature

• Support HDMI input format; 480i,576i,480p,576p,720p50/59.94/60,1080p24/25/29.97/30,1080i 50/59.94/60,1080p 50/59.94/60;
• compatible Up to 1920x1080@60HzVGA format;
• Support VAG resolution format max1920x1080@60Hz, compatible with various VESA standards and common non-VESA standard resolution format;
• Compatible with YpbPr video(from VGA interface, use the cable of VGA-YpbPr(equipped with converter) support format : 720p50/59.94/60,1080i50/59.94/60 and 1080p24/25/29.97/30/50/59.94/60;
• Support PAL(576i)/NTSC(480i) AV(CVBS) signal input;
• SDI output support SD, HD, 3G standard;
• With 2 channels SDI output (redundant output)
• Support HDMI DDC function, support HDCP content protection;
• Input to output format can be arbitrary scaling and frame rate conversion, supporting many image proportion models like maintaining, stretching and etc.
• Support Interlace to Deinterlace interconversion;
• Support HDMI audio or analog audio input;

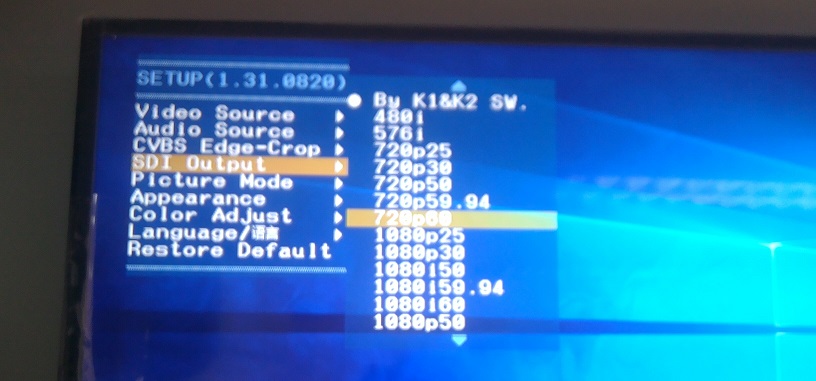

• remote control operation and menu on screen;
• Support OSD input/output signal format;
• Support lock the last screen when signal loss, lock and time-delay is adjustable, option blue/black screen warning when signal loss;

Specification:

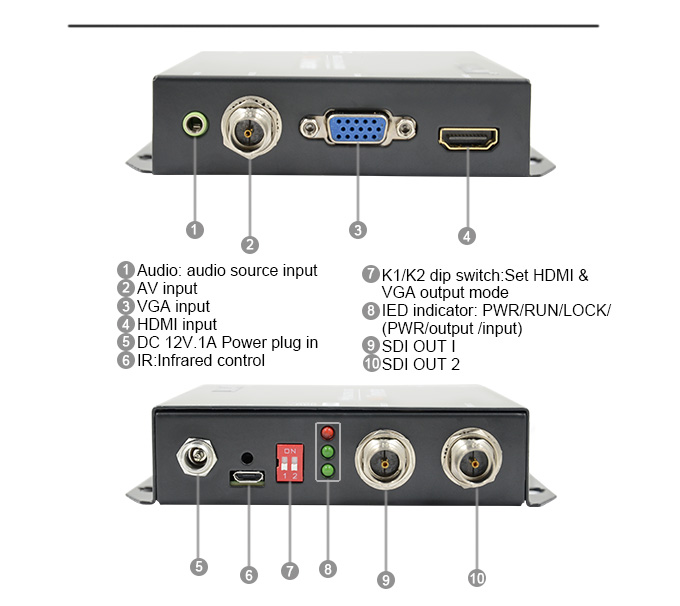

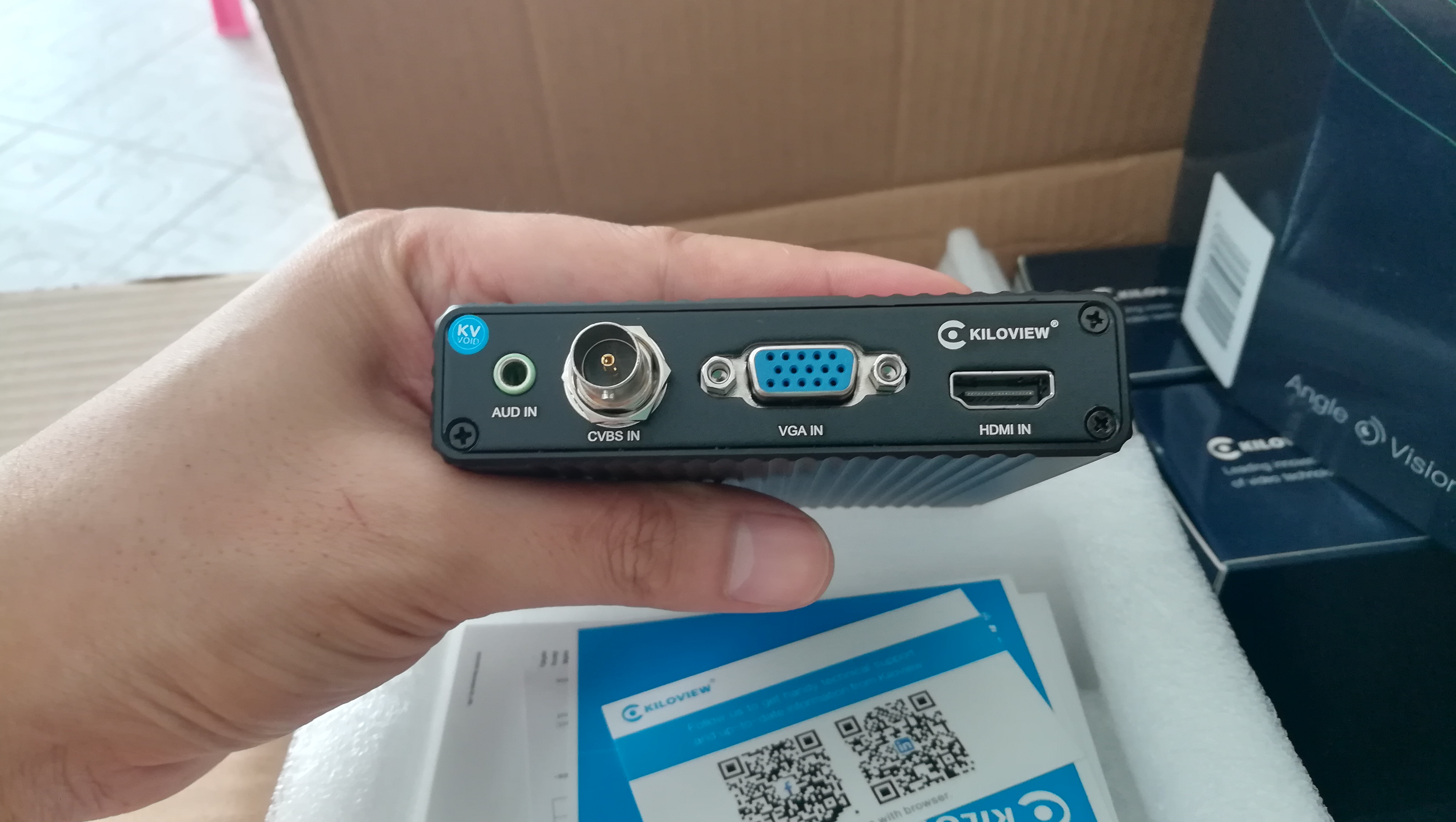

• Input interface HDMI : 1×HDMI
• Input interface VGA : 1×VGA
• Input interface AV(CVBS) : ×BNC-F
• Frequency band width (HDMI) : 225MHz/coincidence standard (HDMI 1.3)
• Support input format : HDMI: 480i, 576i, 480p, 576p, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@24/25/29.97/30, 1080p50/59.94/60, compatible VGA format Up to 1920x1080@60HzVGthe highest 1920x1080@60Hz, support all VESA standard resolution and normal no-VESA resolution

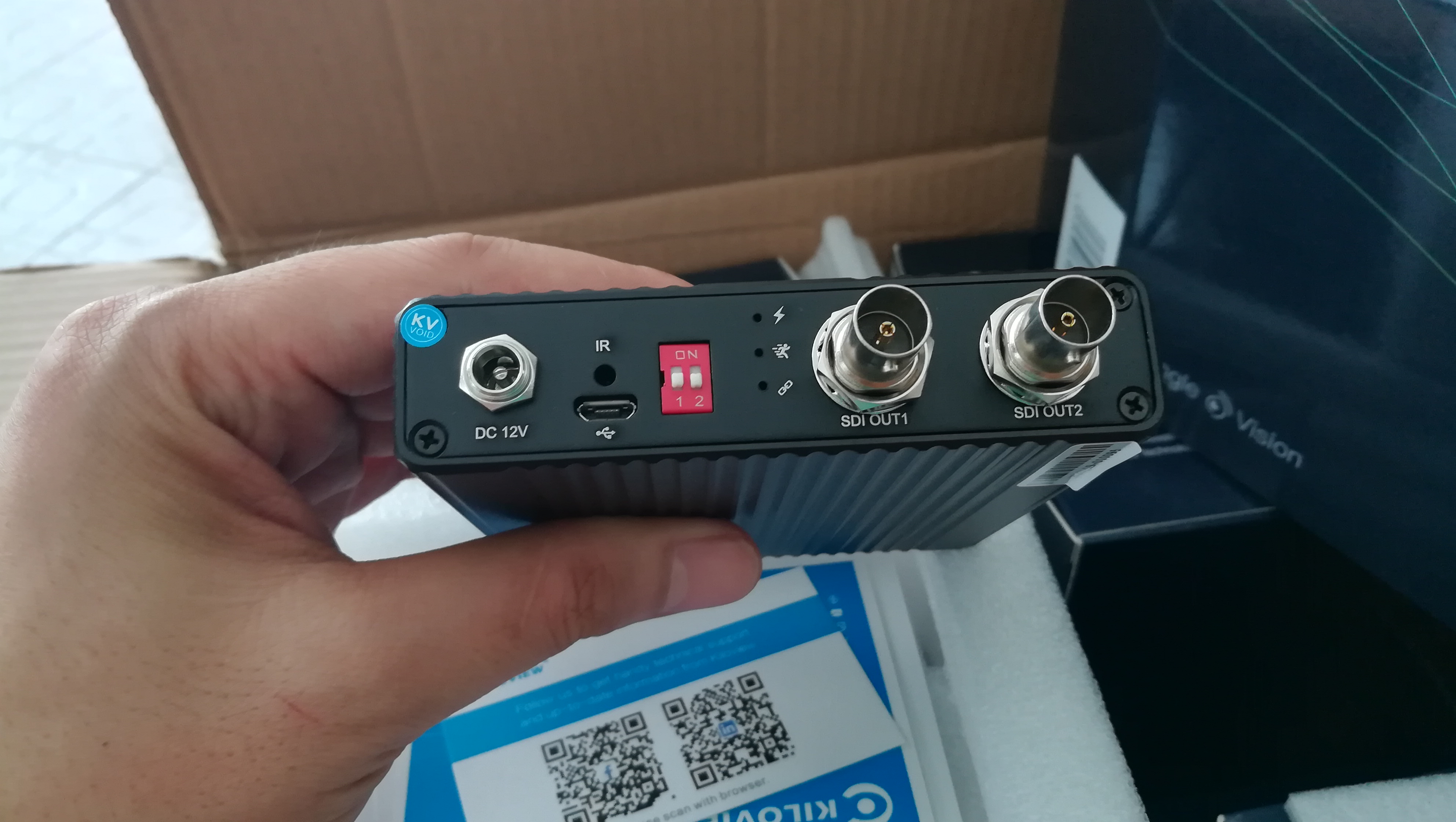

• Output interface : 2×SD/HD/3G-SDI
• Output signal type : SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
• SDI signal level : 0.8Vp-p
• SDI impedance : 75 ohm
• SDI coupling type : AC coupling
• SDI signal jitter(typical) : SD-SDI≤0.1UI HD-SDI≤0.2UI 3G-SDI≤0.4 UI
• Maximum output coax length : Belden 1694A: SD-SDI 400m, HD-SDI 200m, 3G-SDI 140m
• Notice: the test result will be different due to the above transmission distance is depend on different coax
• Dimension (mm) : 158*120*36
• Power Requirement : 5~24VDC

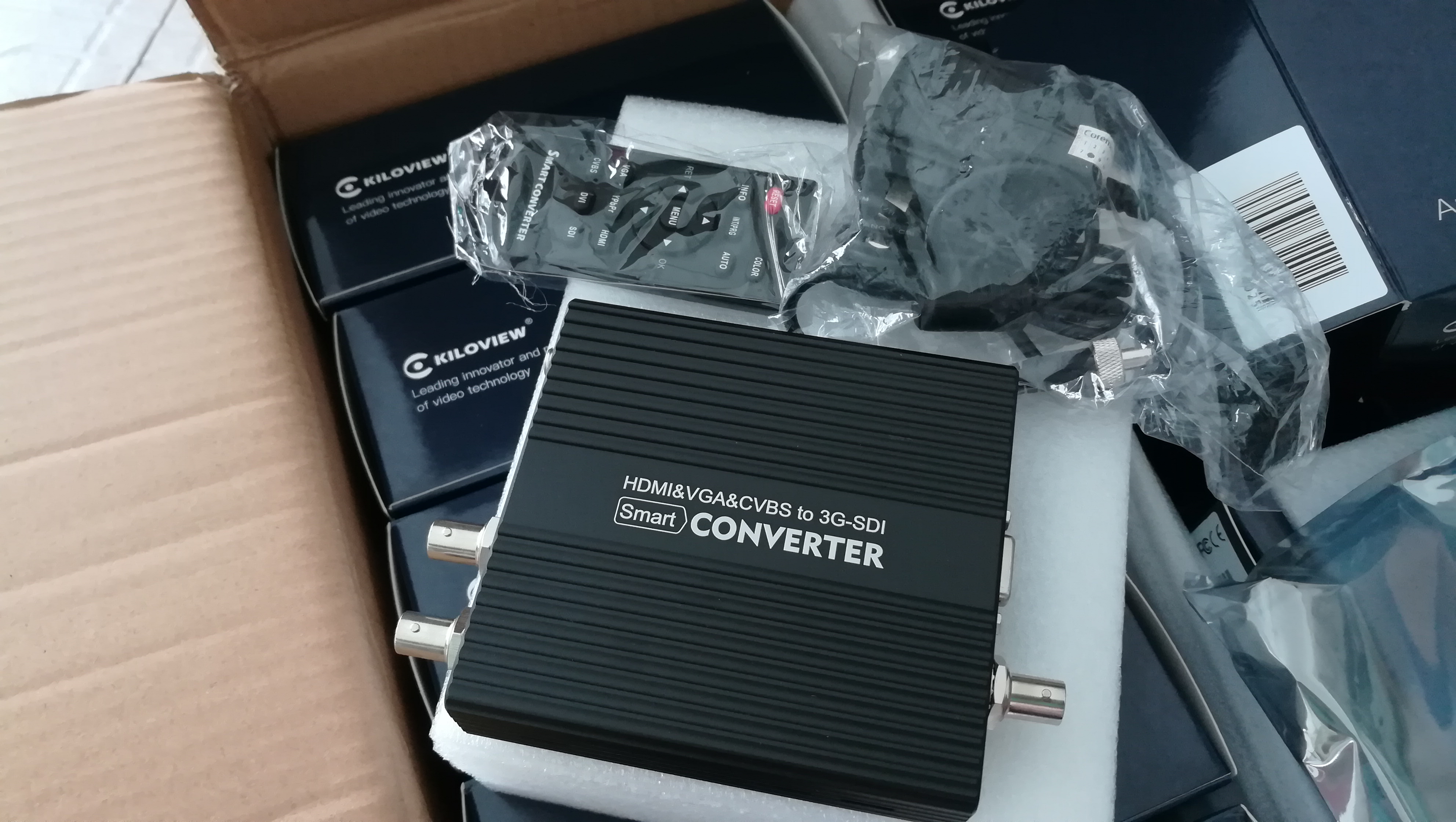

In the Box:

• 1 x HDMI/VGA/CVBS to 2×SD/HD/3G-SDI Multifunctional Converter
• 1 x Remote Controller
• 1 x AC Charger
