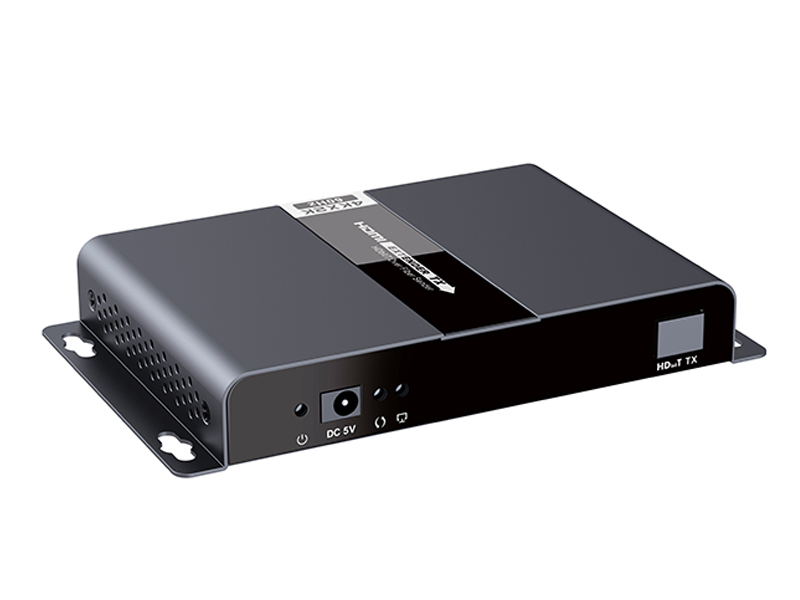

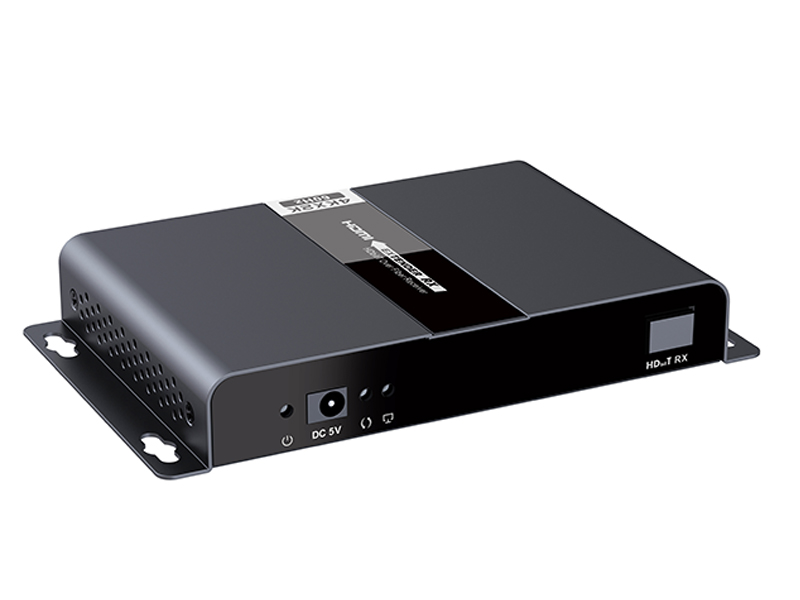

LKV678 HDbitT HDMI Extender Over Fiber Optics
| รหัสสินค้า | LKV678 |
| หมวดหมู่ | HDMI EXTENDER |
| ราคา | 0.00 บาท |
| สถานะสินค้า | พร้อมส่ง |
| สภาพ | สินค้าใหม่ |
| ลงสินค้า | 14 ธ.ค. 2560 |
| อัพเดทล่าสุด | 19 มิ.ย. 2562 |
| คงเหลือ | ไม่จำกัด |
| จำนวน | ีืunit |
รายละเอียดสินค้า
Introduction
This HDMI extender over fiber optics , includes a transmitter unit and a receiver unit, applies the advanced HDbitT over IP technology , can extend HDMI signal up to 20Km between the source device and display device over fiber optic cables. This product is perfect for long distance transmisson field.
HDbitT: High-definition digital network transport protocol, compared to traditional technology, it provides better stable performance, image clarity, further transmission distance and other significant advantages, easily to meet the demand for high-definition long-distance transmission without any converter.
Features
1. Plug and play.
2. Support SMF and MMF cables.
3. No need to install any driver
4. Apply advanced HDbitT over IP technology.
5. Supported resolution is up to 4Kx2K@60Hz.
6. Wall-mountable design, easy for installation.
7. Low signal loss, wide frequency band and strong anti-interference.
8. Transmission distance up to 20Km over SMF cable (500m over MMF cable).
9. Avoid the electromagnetic interference in environment for long distance transmission.
Connection
1.Point to point connection
Up to 20 Km transmission distance over single fiber optic ( Up to 500m transmission distance over multi-mode fiber optics)
2.One-to-many Connection
By using fiber splitter，one transmitter to several receivers, realize extender + splitter function.
Specification
| Items | Specifications |
| Voltage/Current | DC5V/3A |
| Power consumption | TX＜8W RX＜10W |
| HDMI compliance | HDMI2.0 |
| HDCP compliance | HDCP2.2 |
| HDMI connector | Type A, female |
| HDMI input resolution supported |
480i@60Hz, 480p@60Hz，576i@50Hz，576p@50Hz，
720P@50/60Hz,1080i@50/60Hz,1080p@50/60Hz 4Kx2K/24/25/30/60Hz
|
| HDMI output resolution supported | 1080p@60Hz, 4Kx2K@30/60Hz |
| Transmission distance | Transmission distance up to 20Km over SMF cable (500m over MMF cable) |
| Audio formats supported | L/R stereo audio |
| Maximum transfer rate | 18Gbps |
| Input and output TMDS signal | 0.7～1.5Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| Input cable length supported | ≤5m(AWG24 HDMI2.0cable standard) |
| Output cable length supported | ≤5m(AWG24 HDMI2.0cable standard) |
| IR remote control | Support IR passback with 20-60KHz frequency |
| Electrostatic protection of the whole machine |
1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2
|
| Working temperature | 0～60℃ |
| Storage temperature | -10～70℃ |
| Humidity (no condensation) | 10～95% |
| Dimension | 155.70(W) x 97.48(D) x 22.80(H)mm |
| Material | Metal housing |
| Finishing | Grit blast |
| Colour | Black |
| Weight | TX：340g，RX：350g |
| Mean time between failures (MTBF) | >30000 Hours |
