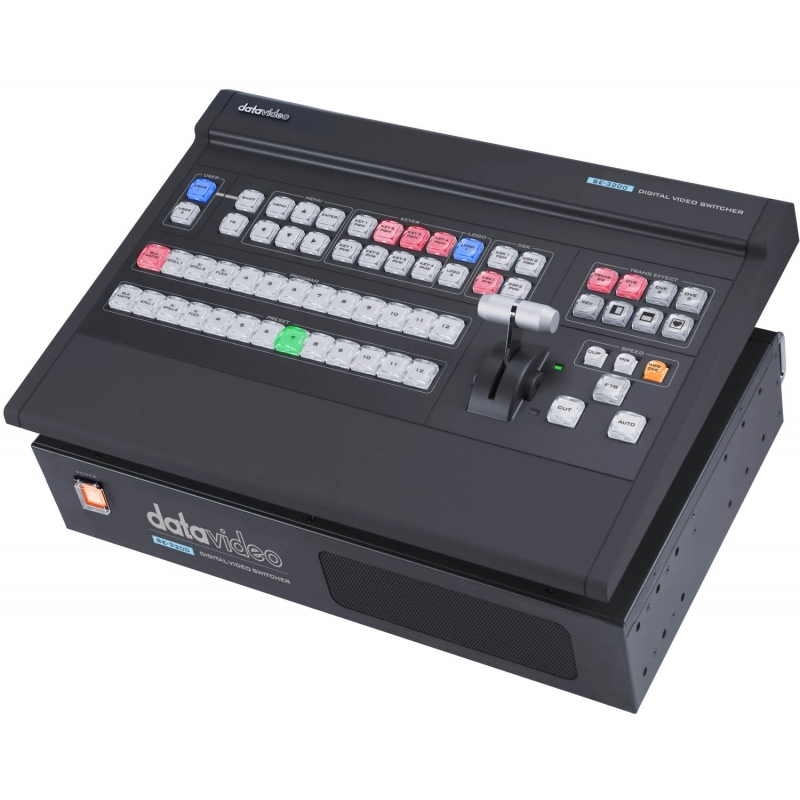

HD 12-CHANNEL DIGITAL VIDEO SWITCHER

HD 12-CHANNEL DIGITAL VIDEO SWITCHER
HD 12-CHANNEL DIGITAL VIDEO SWITCHERHD 12-CHANNEL DIGITAL VIDEO SWITCHERHD 12-CHANNEL DIGITAL VIDEO SWITCHER
รหัสสินค้า SE-3200
หมวดหมู่ DATA VIDEO
ราคา 0.00 บาท
ยี่ห้อ DataVideo
รุ่น SE-3200
สถานะสินค้า พร้อมส่ง
สภาพ สินค้าใหม่
ลงสินค้า 15 มิ.ย. 2562
อัพเดทล่าสุด 5 มี.ค. 2567
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : SE-3200, SE-3200 ราคา, วีดีโอวอ, Video Wall, ตัวควบคุมวีดีโอวอ, contorller video wall, ตัวควบคุมฉายภาพโฆษณา, ตัวควบคุมฉายภาพโฆษณา ราคา, switcher video wall ราคา, mixer video wall ราคา, ตัวคุมฉายโฆษณา

รายละเอียดสินค้า



The SE-3200 is a professional 12-channel, 1080p video switcher that provides powerful and easy-to-use video effects such as four upstream keyers for Chromakey and Luma Key, dual DSK, PIP, and WIPE transitions.

คุณสมบัติ

  • 12 Video Input Channels: 8 x SDI and 4 x HDMI
  • 9 Video Output Channels: 6 x SDI and 3 x HDMI
  • 4 Upstream Keys for chromakey, linear and luma keys as well as picture-in-picture
  • 8 Picture-in-Picture (4 flex source included), with configurable ratio, position and size
  • 2 Downstream Keyers for linear and luma keys
  • 2 static or animated logos with configurable position and size
  • WIPE, MIX, DVE and CUT transitions
  • 32 WIPE patterns such as circle and heart with adjustable border width and color softness
  • Supports stinger transition for live sports broadcast
  • Any input (1-12) can be used as a frame store
  • Supports XPT (Cross Point Assignment)
  • 4 XLR analogue audio input channels with each channel carrying four audio tracks
  • 2 XLR de-embedded analogue audio output channels
  • Dual color (red/green) tally outputs
  • Supports Tri-Level and Black Burst sync reference
  • 2 readily available user memory presets

อุปกรณ์ในกล่อง

  • 1x SE-3200
  • 1x SE-3200 Control Board
  • 2x AD Switch DC 12V
  • 1x AC Cord
  • 1x DB9P to DB9P Cable
  • 12x Screws
  • 2x 2U Ear Rack
  • 1x Thank You Card

Datavideo's most advanced 12 input 1080P switcher

Supports full 1080P

The SE-3200 is Datavideo's top of the line switcher with full 1080p support on every input and ouput.



Perfect for large-sized live video productions

The SE-3200 is equipped with 12 inputs (8x SDI, 4x HDMI) and 9 outputs (6x SDI, 3x HDMI) to help you produce a sophisticated and professional live event.



Create stunning video effects with advanced features

Advanced features include 8x PIPs, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent logos or dual chromakeyers.



Built-in animation and backgrounds

Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects.



More cool features of SE-3200

  • Built-in animation and backgrounds
  • Choose from a variety of pre-saved animated stinger transitions and 50 virtual set backgrounds to create advanced effects.
  • 4 Chromakeyers provide you the 4-channel virtual studio effect
  • 4 Channels of Virtual Studio provide you a professional live production.
  • Supports XPT (Cross Point Assignment)
  • A XPT feature giving you a much easy use on the live production.
  • 4 XLR analogue audio input and 2 de-embedded output channels
  • Professional audio arrangement for your live production.


Specifications


SE-3200 HD 12-Channel Digital Video Switcher
Video Standard

Full HD
Video Format

1080p 50/59.94/60Hz
1080i 50/59.94/60Hz
720p 50/59.94/60Hz
Video Processing

SDI: 4:2:2
HDMI: YUV 4:2:2, RGB: 4:4:4
Input Routable / Crosspoint

All 12, repeatable
Video Input

8x SDI, 4x HDMI
Computer Graphic Interface

4 via HDMI
Video Output

6x SDI Outputs assignable:
Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
3x HDMI assignable:
Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12, STILL 1, STILL 2, Flex source
Built-in Multi-view Monitoring Out

HDMI
Audio Input

4x Balanced XLR
Audio Output

2x Balanced XLR
Embedded Audio Support

Embedded 4-CH audio output
Audio Delay Calibration

Up to 16 fields or 8 frames per channel
A+V Switching

Yes
Chromakey

4
USK

4x USK support Chromakey & Linear/ Luma Key
DSK

2x DSK support Lumakey & Linear key (Key / Fill)
Picture in Picture

8 (4x PIP, 4x Flex Source)
Logo Insertion

2
Still Store

500
Effects

DVE, FTB, Cut, 32 Wipe with border
Transition Preview

Full transitions preview
Sync / Reference In/Out

Built-in Genlock
Support external sync with loop thru
Tally Output

1x D-sub 25pin, dual color
PC Remote Control

Via Ethernet (free Window software) or RS-422 / RS-232
Special Features

4 User Memory Preset
Free Virtual Set and Stinger transition included
Chassis

2 units, 2RU rack-mount mainframe
Dimension (LxWxH)

433 x 312 x 76 mm (switcher)
432 x 252 x 88 mm (main unit)
Weight

4 kg
Power

DC 12V, 69W
Operating Temp. Range

0~40 °C
Options

CB-46/47/60/61/62


System Diagrams
