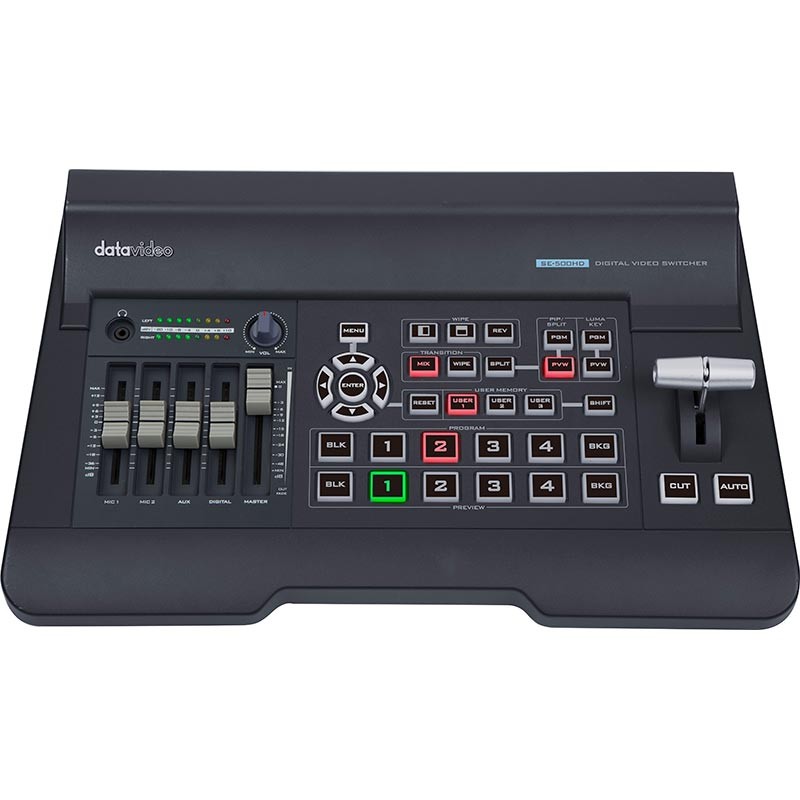

4-CHANNEL 1080P HDMI VIDEO SWITCHER
| รหัสสินค้า | SE-500HD |
| หมวดหมู่ | DATA VIDEO |
| ราคา | 0.00 บาท |
| ยี่ห้อ | DataVideo |
| รุ่น | SE-500HD |
| สถานะสินค้า | พร้อมส่ง |
| สภาพ | สินค้าใหม่ |
| ลงสินค้า | 15 มิ.ย. 2562 |
| อัพเดทล่าสุด | 5 มี.ค. 2567 |
| คงเหลือ | 1 ชิ้น |
| จำนวน | ชิ้น |
รายละเอียดสินค้า
The SE-500HD is a small, cost-effective, 1080p HDMI video switcher with easy-to-use professional features. It has four HDMI inputs and two HDMI outputs, which allow users to connect consumer camcorders, GoPros, HDMI laptops or tablets. What makes the SE-500HD special is the ability to accept various input resolutions at once, so users no longer need to add converters into the workflow.
FEATURES
- 4 Channel HD/SD Digital Video Switcher
- Supports up to Full HD 1080p
- Video Input: 4x HDMI
- Video Output: 2x HDMI (1x Multiview | 1x Program)
- Audio Input: 1x Stereo RCA | 2x Microphone
- Audio Output: 1x Stereo RCA | 1x Stereo headphone mini Jack
- Audio Mixer: 2x Mic | 1x Stereo RCA | 1x internal Digital embedded
- Audio LED Meter
- Transitions: Wipe, Mix & Cut
- Keyer: Lumakey
- Picture-in-picture and split functions
- Tally Output
4-Channel 1080p HDMI Video Presentation Switcher
Datavideo's most affordable 1080p switcher
Supports up to Full HD 1080P
Scale mixed resolution/standards inputs up to 1080p.
HDMI 1080p switching with advanced features, at a fraction of the cost
Don't let the SE-500HD fool you with its affordability and compact design. This 1080p switcher comes loaded with features such as luma key for graphic overlays, split screen for podcast interviews, and PiP for Powerpoint presentations.
Built-in audio mixer
The SE-500HD's built-in audio mixer means that you've got everything you need to control your audio input levels. For most productions, this means that there's no need to buy a separate external audio mixer.
Supports lumakey for titles
With built-in lumakey, user can use PPT to easily create titles by graphic overlays.
Specifications
| SE-500HD 4-Channel 1080p HDMI Video Presentation Switcher | |
|---|---|
| Video Standard |
Full HD & SD |
| Video Format |
1080p 50/59.94/60Hz |
| Video Processing |
HDMI: YUV 4:4:4 10 bit, RGB: 4:4:4 |
| Video Input |
4x HDMI |
| Mix HD & SD Source |
Yes |
| Computer Graphic Interface |
4 via HDMI |
| Video Output |
2 x HDMI (1 is MV, 1 is PGM) |
| Down-converted Output |
Yes |
| Built-in Multi-view Monitoring Out |
HDMI |
| Audio Input |
1 x Stereo RCA (L/R) |
| Audio Output |
1 x Stereo RCA (L/R) |
| Embedded Audio Support |
Embedded 2-CH digital/analogue audio |
| A+V Switching |
Yes |
| USK |
Lumakey |
| Picture in Picture |
1 |
| Effects |
FTB, Cut, Wipe with border |
| Sync / Reference In/Out |
Built-in Genlock (internal) |
| Tally Output |
1x D-sub 15pin, dual color |
| Built-in Audio Mixer |
Yes, 4 channels |
| Special Features |
Built-in video scaler for mixed resolution inputs |
| Chassis |
Unibody |
| Dimension (LxWxH) |
400 x 250 x 82 mm |
| Weight |
1.7 kg |
| Power |
DC 12V, 29W |
| Operating Temp. Range |
0~40 °C |
| Options |
CB-46/47/60/61/62 |
System Diagrams
