4 INPUT HD DIGITAL VIDEO SWITCHER

4 INPUT HD DIGITAL VIDEO SWITCHER
4 INPUT HD DIGITAL VIDEO SWITCHER4 INPUT HD DIGITAL VIDEO SWITCHER4 INPUT HD DIGITAL VIDEO SWITCHER
รหัสสินค้า SE-650
หมวดหมู่ DATA VIDEO
ราคา 0.00 บาท
ยี่ห้อ DataVideo
รุ่น SE-650
สถานะสินค้า พร้อมส่ง
สภาพ สินค้าใหม่
ลงสินค้า 15 มิ.ย. 2562
อัพเดทล่าสุด 5 มี.ค. 2567
คงเหลือ 1 ชิ้น
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

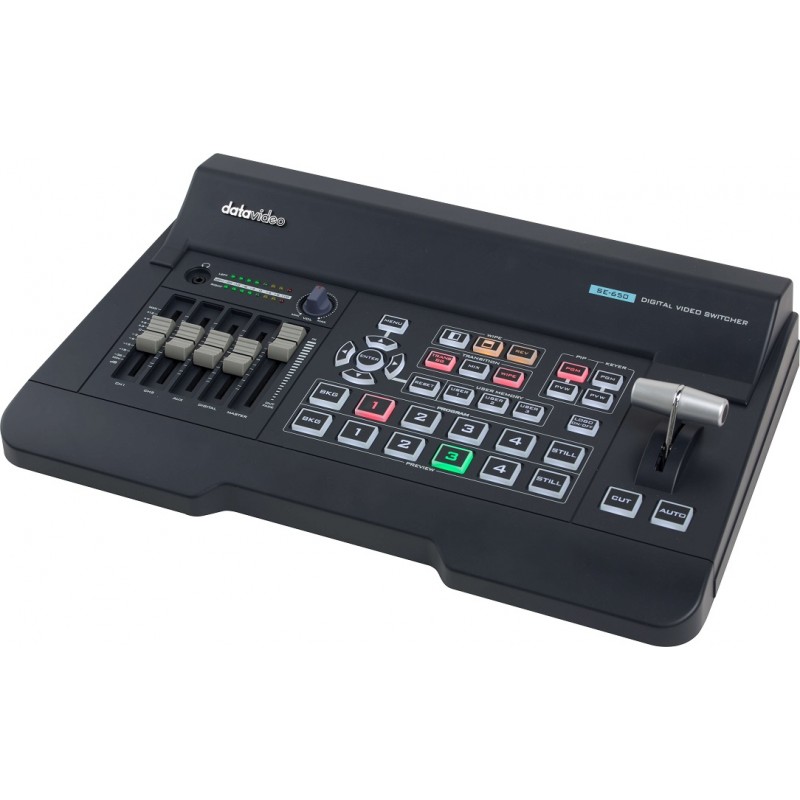

Datavideo SE-650 มีขนาดเล็ก, คุ้มราคา, เป็นสวิทช์สลับสัญญาณวิดีโอ HD แบบมืออาชีพ รองรับสัญญาณ Input แบบ HD-SDI x 2 และ HDMI x 2 มาพร้อมกับคุณสมบัติ Chromakey, Luma key, PiP, wipe generator, still store และ tally.


คุณสมบัติ

  • เป็น HD digital video switcher แบบ 4 Input
  • Inputs: HD-SDI x 2 และ HDMI x 2
  • Outputs: HD-SDI x 1 และ HDMI x 2
  • ทุก Input สามารถทำการ Frame store ได้ (Stills Store)
  • กำหนดรูปแบบ Outputs ได้: Program (w/ DSK), Clean Program (w/o DSK), Clean Preview (w/o DSK), Multi-view
  • มีระบบ Frame Sync ในแต่ละ input
  • มีระบบ Mix/Effects Processor ที่ยืดหยุ่น ด้วย 1 Upstream Keyer, สนับสนุนการทำ Chromakey & Linear/ Luma Key
  • 1 Upstream PIP, สนับสนุนการทำ Chromakey & Luma Key
  • ระบบ Wipe Generator ที่มี: 32 Wipe Patterns, รวมถึงรูปแบบ Circle & Heart - Borders & Softness Control
  • มีฟังค์ชั่น Full M/E Preview
  • สามารถใส่ Logo ได้ (Animation logo, X/Y size)
  • มีระบบ XPT (Cross Point Assignment)
  • มี Tally Output แบบ DB15-Pin
  • เป็น Audio Mixer แบบ 6 Channel
  • Audio inputs: 2 x RCA Analogue (L/R) และ 2 x Microphone
  • Audio outputs: 2 x RCA Analogue (L/R) และ 1 x Stereo headphone mini Jack
  • มีฟังค์ชั่น Audio em-bedded
  • มีเมนูที่สนับสนุนหลายภาษา

อุปกรณ์ในกล่อง

  • 1x SE-650 product
  • 1x AD Switch DC 12V with AC Cord
  • 1x Thank You Card


4 Input HD digital video switcher

A combination of flexibility, affordability, and ease-of-use for small-sized productions

SDI and HDMI inputs on a budget

The SE-650 is Datavideo's most affordable SDI+HDMI switcher available. With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog.



Easy on the outside. Professional on the inside.

The SE-650's intuitive control panel makes switching a piece-of-cake for experienced users, as well as for beginners such as volunteers and students. Though it's geared for novice users, the SE-650 is packed with advanced features such as lumakey and chromakey.



Built-in audio mixer

The SE-650's built-in audio mixer means that you've got everything you need to control your audio input levels. For most productions, this means that there's no need to buy a separate external audio mixer.



Built-in animations and backgrounds

Choose between a variety of pre-saved animated stinger transitions and virtual set backgrounds.



Supports XPT (Cross Point Assignment)

A XPT feature giving you a much easy use on the live production.



Specifications


SE-650 4 Input HD digital video switcher
Video Standard

HD

Video Format

1080i 50/59.94/60Hz
720p 50/59.94/60Hz

Video Processing

SDI: 4:2:2
HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4

Input Routable / Crosspoint

All 4, repeatable

Video Input

2x HD-SDI
2x HDMI

Computer Graphic Interface

2 via HDMI

Video Output

2 x HDMI (1 is MV, 1 is Assignable)
1 x HD-SDI (Assignable)

Built-in Multi-view Monitoring Out

HDMI

Audio Input

1 x Stereo RCA (L/R)
2 x Mono Microphone
De-embedded Digital Audio (2 CH)

Audio Output

1 x Stereo RCA (L/R)
1 x Stereo headphone (Mini Jack with volume control)
Embedded Digital Audio (2 CH)

Embedded Audio Support

Embedded 2-CH digital/analogue audio

A+V Switching

Yes

Chromakey

2

USK

1x USK support Chroma Key & Linear/ Luma Key

Picture in Picture

1

Logo Insertion

1

Still Store

500

Effects

FTB, Cut, 32 Wipe with border

Transition Preview

Full transitions preview

Sync / Reference In/Out

Built-in Genlock (internal)

Tally Output

1x D-sub 15pin, dual color

Built-in Audio Mixer

Yes, 4 channels

Special Features

Free Virtual Set and Stinger transition included

Chassis

Unibody

Dimension (LxWxH)

400 x 250 x 82 mm

Weight

1.9 kg

Power

DC 12V, 29W

Operating Temp. Range

0~40 °C

Options

CB-46/47/60/61/62



System Diagrams
