Lilliput Q7 Full HD

Overview

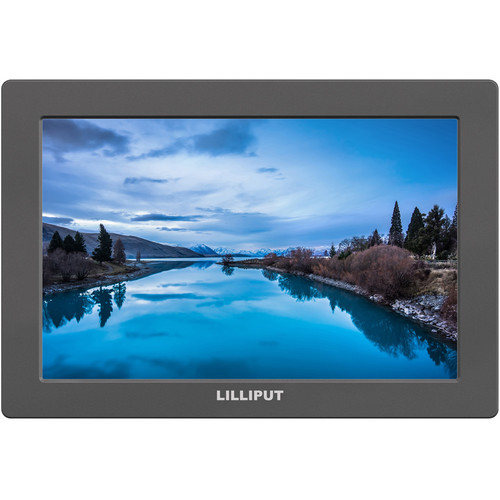

TheQ7 Full HD Monitor with SDI & HDMI Cross ConversionfromLilliputfeatures a 7" LCD panel with 1920 x 1200 resolution, 1000:1 contrast ratio, and 500 cd/m² brightness. It has an aspect ratio of 16:10 and 170°/170° wide viewing angles.

This field monitor comes integrated with advanced functions such as column YRGB (peak), timecode, waveform, vectorscope, and audio level meter. It also offers additional functions that can assist you in accurately monitoring while shooting video and playing back footage. These functions include pixel zoom, peaking, false color, histogram, exposure, check field, color bar, image flip, and pix-to-pix.

The high-quality HDMI and 3G-SDI inputs ensure that the precise color can be conveniently controlled under multiple displays. It comes with SDI and HDMI cross conversion that allows signal transmission from SDI input to HDMI out, and from HDMI input to SDI out. The monitor features a 0.9" slim metal housing that protects it from vibration, drops, and adverse weather conditions.

Features

• Full HD 1920 x 1200 resolution
• Brightness 500 cd/m²
• Contrast ratio 1000:1
• Waveform PIP mode
• Column (YRGB peak), time code
• Integrated recording information display
• SDI and HDMI cross conversion
• Slim metal housing 0.9" (22 mm)
