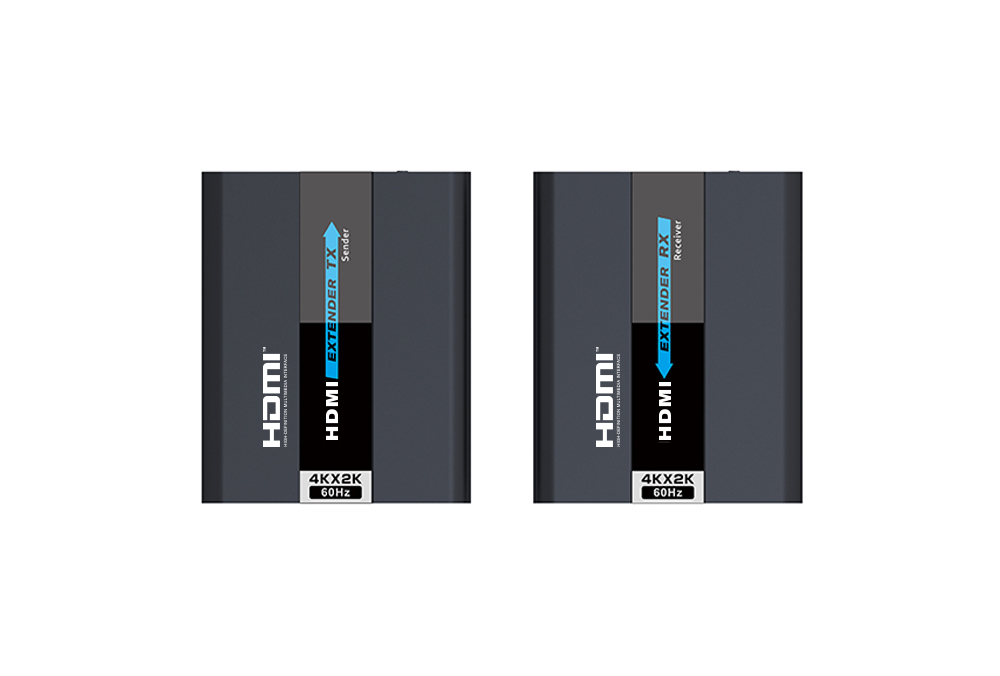

HDMI 2.0 Extender 30m over CAT6/6a/7 with 4KX2K@60Hz

LKV672PRO

This HDMI Extender includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 50 meters at 4K×2K@30Hz, and up to 30 meters at 4K×2K@60Hz long away via a single CAT6/6A/7 cable in a point-to-point configuration. It supports IR passback with a wide IR frequency 20-60KHz.Transmitter with a HDMI loop out,convenient for monitor at location. It supports receiver be powered from the transmitter (Connect power supply to the transmitter only), please note that this HDMI Extender can not use with switch or router.It is


Features

• Metal casing, stable and durable
• Transmission over single CAT6/6A/7
• Transmitter support one HDMI loop-out
• Highest resolution support 4Kx2K@60Hz
• Support HDMI2.0, compatible with HDCP2.2
• Built in EDID pass back function to get better compatibility
• Support IR passback function (IR range support 20～60KHz )
• Support distance up to 50m when 4K@30Hz, and 30m when 4K@60Hz

Specification

Items	Specification
Voltage/Current	DC12V/1A
Power consumption	TX: 4W     RX:＜6W
HDMI compliance	HDMI2.0
HDCP compliance	HDCP2.2
HDMI resolution	480i@60Hz、480p@60Hz、 576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、 1080p@50/60Hz、 3840x2160@24/25/30/60Hz
Supports audio formats	LPCM/DTS-HD/Dolby/AC3
Maximum transfer rate	18Gbps
Input and output TMDS signal	0.5～1.5Vp-p(TMDS)
Input and output DDC signal	5Vp-p(TTL)
Input cable length	≤8m(AWG24)
Output cable length	≤8m(AWG24)
Electrostatic protection of the whole machine	1a Contact discharge level 3 1b Air discharge level 3 Implementation  of the standard: IEC61000-4-2
Working temperature	0～50℃
Storage temperature	-10～70℃
Humidity (no condensation)	0～90%
Dimension	101.1(L) x 81.6(W) x 20.6(H)mm
Material	Aluminium alloy material + crystal panel
Treatment process	Grit blast
Color	Black
Weight	TX: 190g,  RX: 190g
