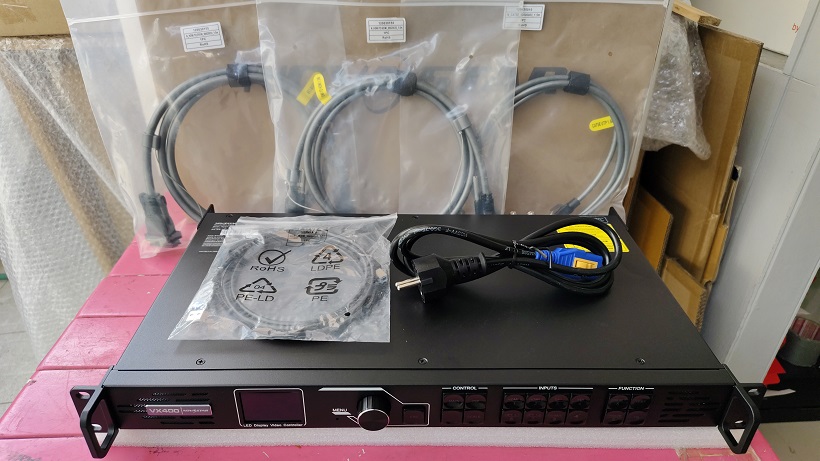

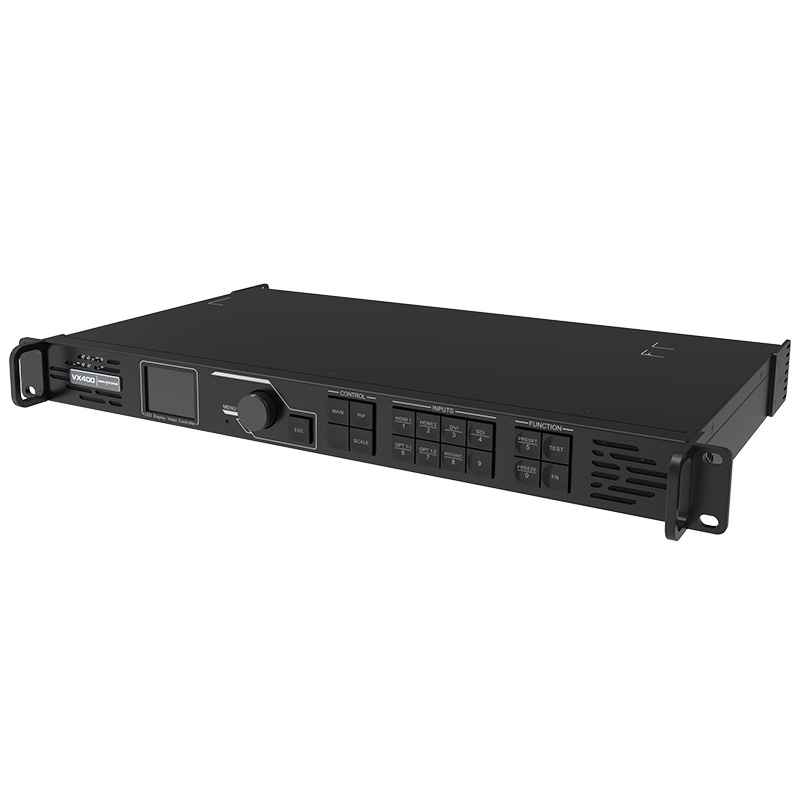

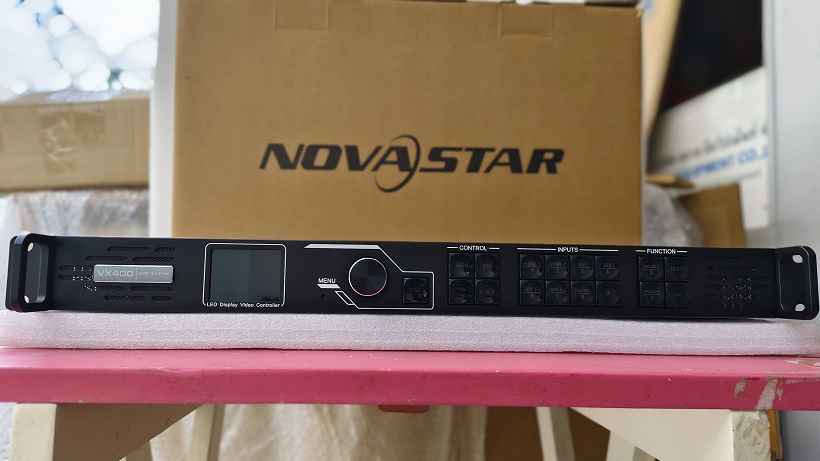

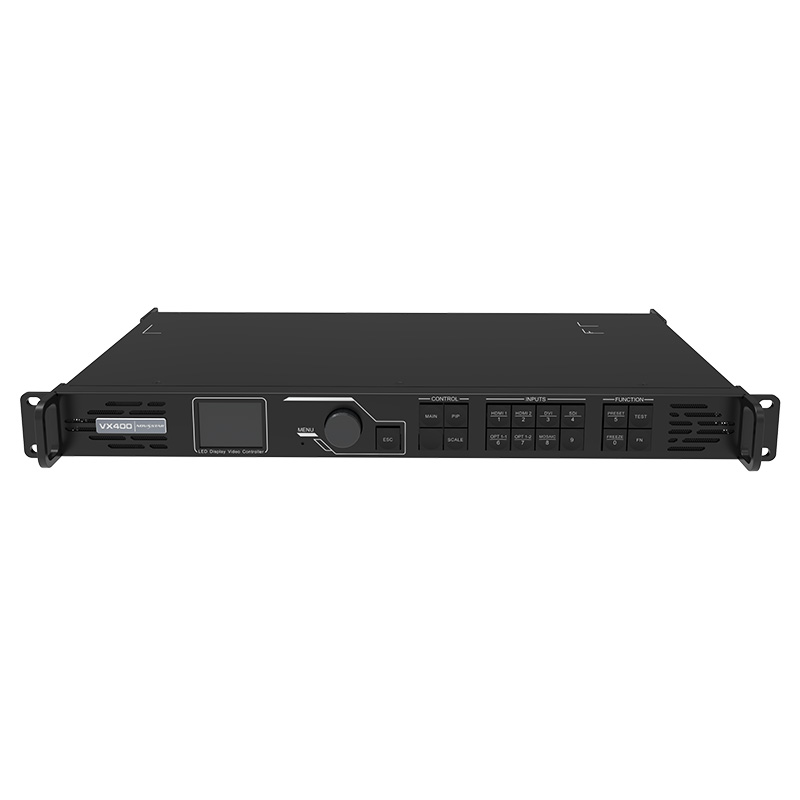

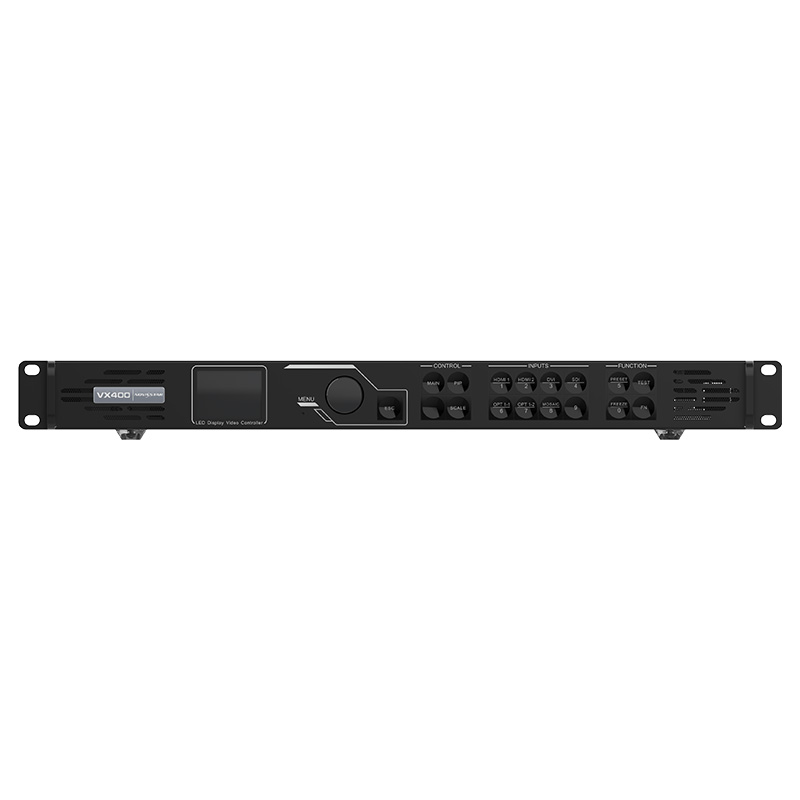

NOVASTAR VX400 All-in-One Controller

HARDWARE FEATURES:

Inputs:

• 2x HDMI 1.3 : 1920×1080@60Hz, compatible with HDCP 1.4, supports interlaced signals, supports custom EDID's:
  • Max. Width: 3840 (3840×648@60Hz)
  • Max. Height: 2784 (800×2784@60Hz)
• 1x DVI: 1920×1200@60Hz, compatible with HDCP 1.4, supports interlaced signals, supports custom EDID's:
  • Max. Width: 3840 (3840×648@60Hz)
  • Max. Height: 2784 (800×2784@60Hz)
• 1x 3G-SDI (max. 1920×1080@60Hz), supports ST-424(3G), ST-292(HD) & ST-259(SD), supports de-interlacing

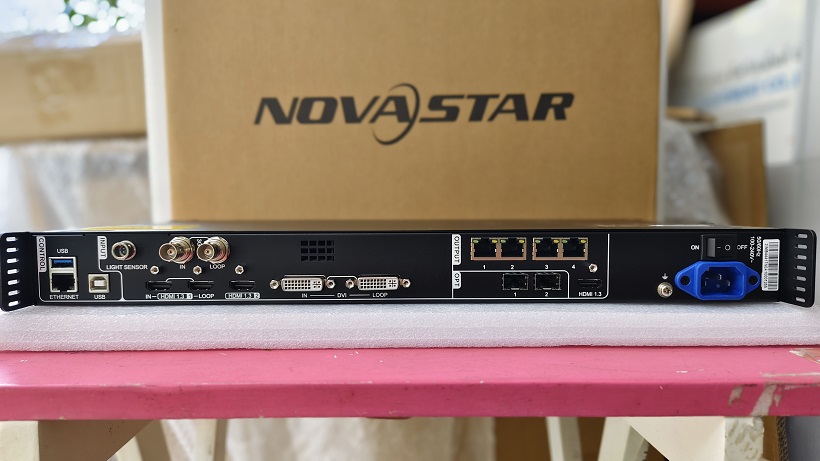

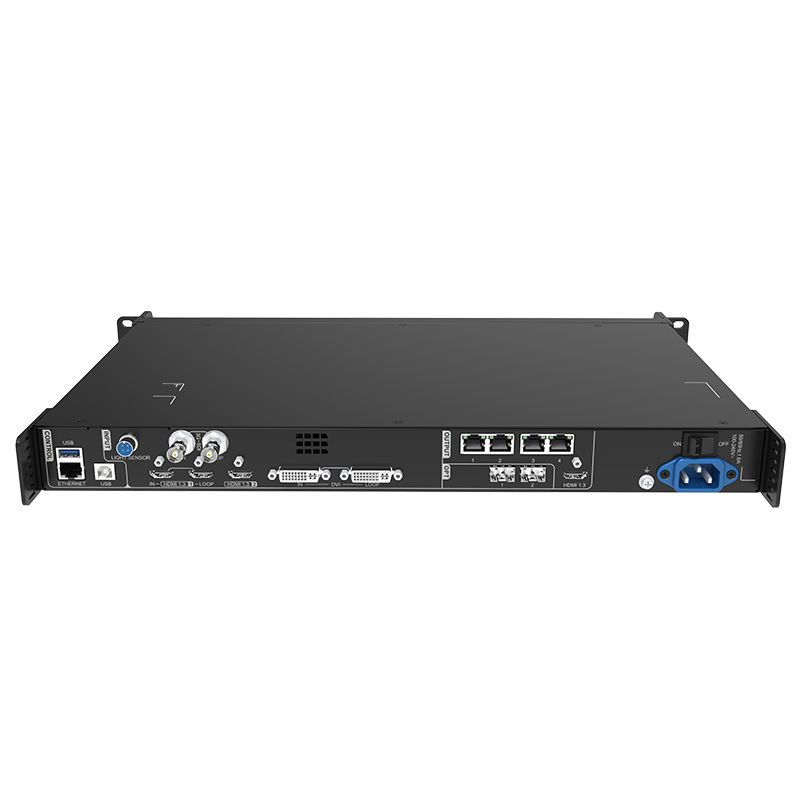

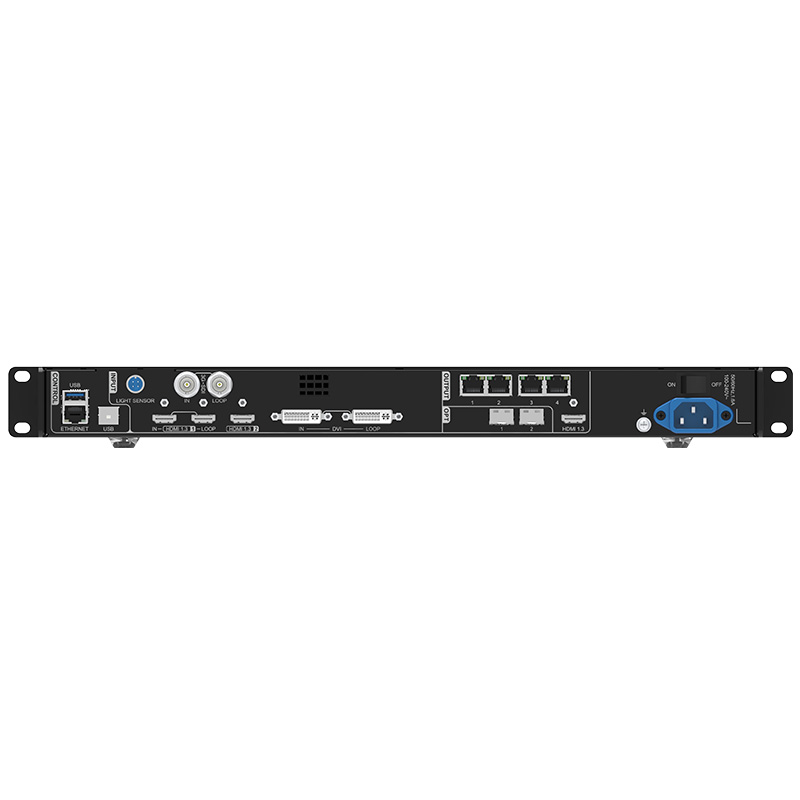

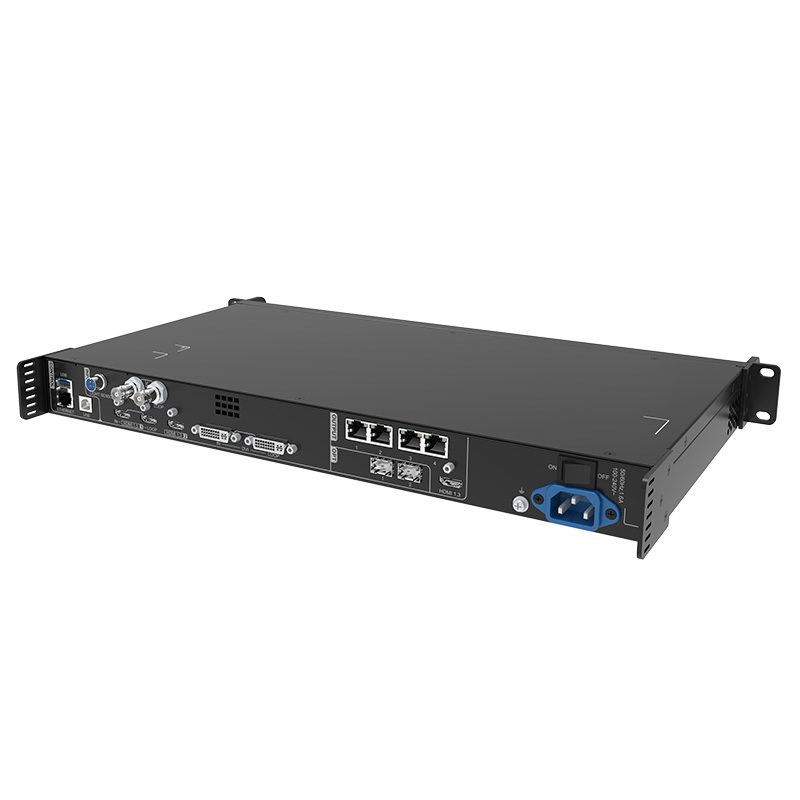

Outputs:

• 4x LED-Out (RJ45)
• 1x HDMI 1.3 Out
• 1x HDMI 1.3 (Loop)
• 1x DVI (Loop)
• 2x OPT-Out (10G)

further features:

• Connection for light sensor
• PIP function
• Memory for 10 presets
• Cascading via USB possible (up to 4 devices)
• Display configuration without computer possible
• Control via USB or LAN
• V-Can Support

general specifications:

• Supply voltage: AC 100-240V, 50/60HZ
• Dimensions: 482.6 x 301.5 x 43.6mm (WxDxH)
• Power consumption: 28 watts
• Weight: 4kg
