The VK112EU is a fully-customizable 12-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind, the 2-gang keypad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego’s. By connecting to the VK2100/VK1100 Control Box over a LAN, users will find it’s effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the buttons ready to go, you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK112EU is an affordable solution, perfect to serve as the primary interface in meeting rooms, or as secondary device control in classrooms and conference centers.

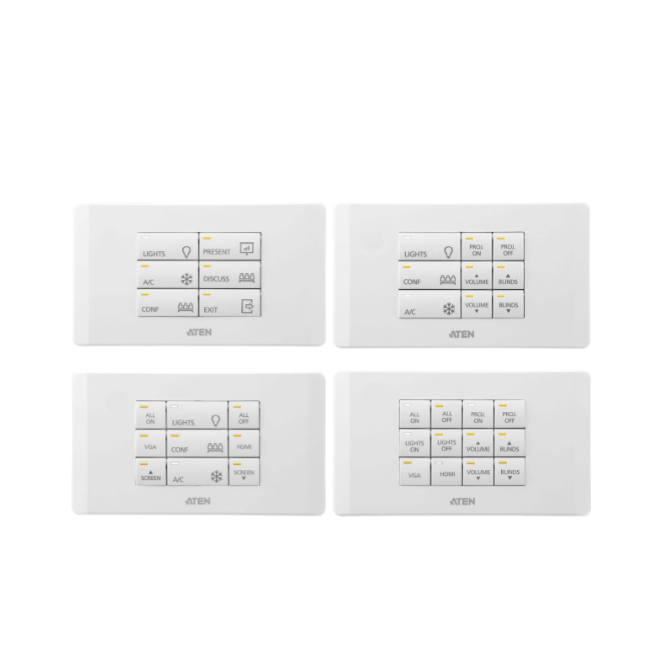

KEYPAD LAYOUT EXAMPLE

FEATURES

• Key pad - provides physical connection to the ATEN Control System
• Fully customizable with 125 layout combinations of 6 to 12 buttons
• System LED indicators for quick connection status check
• Dual-color button LEDs for clear indication and visibility in dark environments
• Easy ID paring with Control Box for Ethernet communication
• Up to 8 keypads connect to a single Control Box for future scalability
• Versatile modes support flexible behavior settings for each button
• Intuitive web GUI for easy keypad configuration
• Redundant power supplies with Power over Ethernet (PoE) and DC power
• Button engraving service

DIAGRAM
